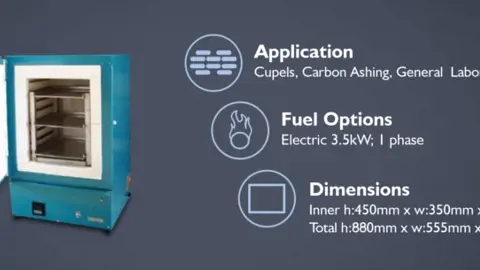

Model EAF

Our Ashing, Calcining and Roasting furnace range is available in a range of sizes. Our engineers work closely with our customers to select the right furnace for their needs.  Contact us today to find out more.

 Key Benefits

  • Preheating of Cupels.
  • Carbon Ashing.
  • General purpose Laboratory work.
  • Built to Industry Standards.



Technical Specifications

Construction

  • Cabinet is 1.2mm zinc anneal sheet metal, lined with insulating fire bricks, backed with Superwool insulation board.
  • The furnace is finished in Hammerfin blue enamel.

Refractory Lining

  • Insulating fire-brick backed with HT Board.

Racks and Trays

  • A rack fabricated from 25 x 25 x 5mm 304 stainless steel angle to accommodate 3 trays at 125mm centres.
  • Trays fabricated from 2mm 304 stainless steel sheet 270 x 370 x 15mm deep.

Internal Dimensions

  • 450 mm high x 350 mm wide x 400 mm deep.

Heating Elements

  • Spiral elements of Kanthal “A1” wire carried in grooves machined into the walls of the furnace. Element rating 3.5 Kw single phase.

Temperature Control

  • Electronic, Automatic control 800°C, type “K” Thermocouple.
  • Switching Solid State Relays on PID control.





Spare Parts

For a recommended spare part list for this particular model, please click here



Quality

Our Ashing Calcining & Roasting Furnaces are manufactured from premium grade raw materials under an ISO 9001:2015 quality management system.
