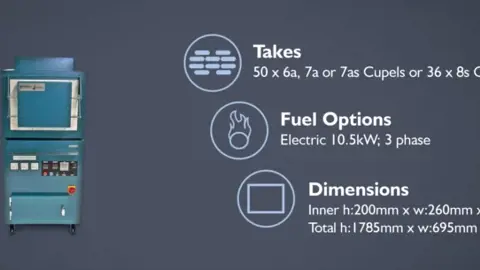

Model EMF-C

Our Cupellation furnace range is available in a range of sizes, suitable for a range of cupels.  Our engineers work closely with our customers to select the right furnace for their needs.  Contact us today to find out more.

Key Benefits

  • Uses a No. 4 Muffle.
  • Takes 50 x 6a, 7a, 7as Cupels or 36 x 8s Cupels at one time.
  • Easy to maintain and operate.
  • Built to Industry Standards.



Technical Information

Construction

  • Cabinet is 2 mm zinc anneal sheet steel, lined with fire bricks and backed with Superwool insulation board.
  • The furnace is mounted on a console fabricated from 2mm Zinc Anneal sheet and painted in Hammerfin blue enamel.

Internal Dimensions

  • No. 4 Muffle.
  • 200 mm high x 260 mm wide x 460 mm deep.

Electrical Requirements

  • 10.5kw, 3 Phase. (NOTE: Voltage is customised to destination country of the furnace).

Burner Equipment and Ratings

  • 12 x Silicon carbide elements rated at 10.5 K.W. 3 phase.
  • Power supply to the elements is per a multi-tapped double wound transformer.

Temperature Control

  • Electronic, Automatic control 1200°C, Type “K” Thermocouple.
  • High Temperature Alarm output.
  • Fitted with a 7 day timer.
  • Fitted with Over Temperature Controller.

Door Operation

  • Counter balanced rising.



Spare Parts

For a recommended spare part list for this particular model, please click here.



Quality

Cupellation Furnaces are manufactured from premium grade raw materials under an ISO 9001:2015 quality management system.



For more information, contact us today.
