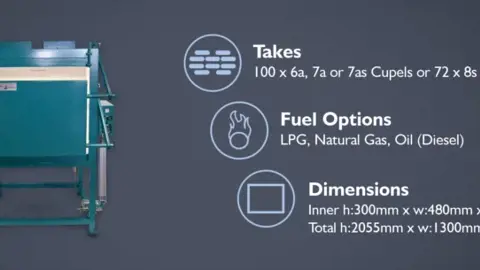

Model MF-D

Our cupellation furnace range is available in a range of sizes, suitable for a range of cupels.  Our engineers work closely with our customers to select the right furnace for their needs.  Contact us today to find out more.

Key Benefits

  • Uses a No. 5 Muffle.
  • Takes 100 x 6a, 7a, 7as or 72 x 8s Cupels at one time.
  • Easy to maintain and operate.
  • Built to Industry Standards.



Technical Specifications

Construction

  • Cabinet is 5 mm steel sheet, mounted on a stand fabricated from 64 x 64 x 2.6mm R.H.S. and finished in Hammerfin blue enamel.

Refractory Lining

  • Hot face of 70% alumina fire-brick backed with insulating fire-brick.

Flame Supervision

  • LPG – Landis & Gyr LME 44 flame controller and U.V. cell
  • Nat. Gas & Distillate – Landis & Gyr LFL1.635.

Temperature Control

  • Electronic, Automatic control 1200°C, type “K” Thermocouple.

Internal Dimensions

  • 300mm high x 480mm wide x 560mm deep.

Burner Equipment and Ratings

  • LPG – 1 x 40mm long pattern inspirator with flame retention nozzle. 270 mj/hr @ 140 kpa.
  • Natural Gas – Furnace Industries NG2 Burner package. 270mj/hr @ 3 kpa.
  • Distillate – Furnace Industries Oil Burner Package. 270mj/hr.

Electrical Requirements

  • The furnace is fitted with a 10 AMP single phase cord and plug top. Electrical load: 5 Amps.

Door Operation

  • Pneumatic rising. Operated by foot control.



Spare Parts

For a recommended spare part list for this particular model, click on the buttons below.

 LPG Natural Gas Oil

Quality

Cupellation Furnaces are manufactured from premium grade raw materials under an ISO 9001:2015 quality management system.



For more information, contact us today.
