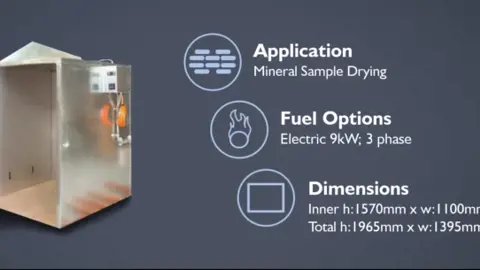

Model 2225-L

Our Sample Drying Oven range is available in a range of sizes. Our engineers work closely with our customers to select the right furnace for their needs.  Contact us today to find out more.

Key Benefits

  • Drying of mineral samples.
  • Large capacity.
  • Easy to maintain and operate.
  • High efficiency.
  • Built to Industry Standards.



Technical Information

Construction

  • The outer cabinet is 1.2 mm galvanised steel sheet. The inner cabinet is 1.2 mm stainless steel sheet.

Internal Dimensions

  • 1570 mm high x 1100 mm wide x 1290 mm deep.

Heating Elements

  • 9 x Stokes 2204 W Elements.
  • Total element rating 9 K.W. 3 phase.

Temperature Control

  • Electronic, Automatic control 180 Deg C, type “K” Thermocouple.

Sample Trolleys

  • 14 stacking trays fabricated from 40 x 40 x 5mm angle and 50 x 5 mm arc mesh with 190 mm long spacing leg and hot dipped galvanised.
  • The bottom trays have 4 x 150 mm diameter steel castors.

Air Circulation

  • Fan motor 0.75 kW 3 phase 2 pole.

Air Extraction

  • Fan motor. 0.37 kW 3 phase 2 pole.



Spare Parts

For a recommended spare part list for this particular model, please click here



Quality

Our Sample Drying Ovens are manufactured from premium grade raw materials under an ISO 9001:2015 quality management system.
