Molten Metal Systems

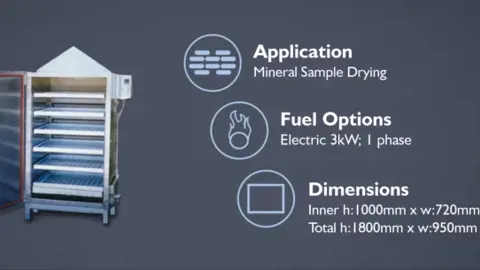

Model 518-L

Our Sample Drying Oven range is available in a variety of sizes. Our engineers work closely with our customers to select the right furnace for their needs.

Key Benefits

  • Drying of mineral samples.
  • High efficiency.
  • Built to industry standards.

Technical Information

Construction

  • The outer cabinet is 1.2 mm galvanised steel sheet. The inner cabinet is 0.9mm stainless steel sheet. Mounted on a floor stand and fabricated from 51 x 51 x 2.6mm R.H.S.

Internal Dimensions

  • 1000 mm high x 720 mm wide x 720 mm deep.

Sample Trays

  • 5 x mesh trays fabricated from 50 x 50 x 5mm arc mesh, surrounded with 25 x 25 x 3mm angle iron, and hot dipped galvanised.

Heating Elements

  • 3 x Stokes 2213U elements. Total element rating 3K.W. 240V single phase.

Temperature Control

  • Electronic, automatic control 180 Deg C, type “K” Thermocouple.

Air Circulation and Steam Extraction

  • Two Fan Motors. Single phase 2 pole with thermal overload 1.3 AMPS each.

Spare Parts

For a recommended spare part list for this particular model, please click here

Quality

Our Sample Drying Ovens are manufactured from premium grade raw materials under an ISO 9001:2015 quality management system.
