Crucible Lifters

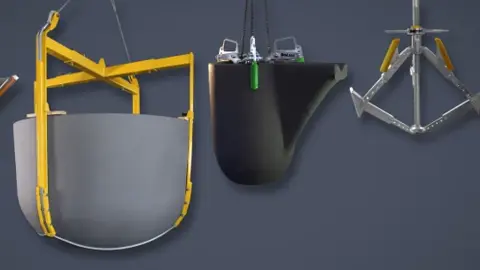

Crucible lifters are designed to safely lift crucibles. A variety of lifters are available.
Application
Basic-Lift: for safe installation of new and removal used crucibles
Vario-Lift: for safe installation of new and removal used crucibles
X-Lift: for safe installation of new and removal used crucibles
Nolti-Lift 900: for safe and easy installation of unused crucibles
Sizes
|
Basic-Lift |
Sets |
Item number |
Inner diameter in mm from |
Inner diameter in mm to |
Max. lifting capacity in kg |
|---|---|---|---|---|---|
|
Set 1 |
1800000265 |
ø 350 (13,65”) |
ø 470 (18,33”) |
550 (1200lb) |
|
|
Set 2 |
1800000265 |
ø 450 (17,55”) |
ø 570 (22,23”) |
550 (1200lb) |
|
|
Set 3 |
1800000265 |
ø 550 (21,45”) |
ø 740 (28,86”) |
550 (1200lb) |
| Vario-Lift |
Size |
Item number |
Inner diameter in mm from |
Inner diameter in mm to |
Max. lifting capacity in kg |
|---|---|---|---|---|---|
|
Size 1 |
1800000270 |
ø 690 (23,62”) |
ø 1180 (46,45”) |
900 (1984lb) |
|
X-Lift |
Sizes |
Item number |
Outer diameter in mm from |
Outer diameter in mm to |
Max. lifting capacity in kg |
|---|---|---|---|---|---|
|
Size 1 |
1800000271 |
ø 515 (20,1”) |
ø 715 (27,88”) |
500 (1100lb) |
|
|
Size 2 |
1800000272 |
ø 700 (27,3”) |
ø 1100 (42,9”) |
1000 (2002lb) |
|
|
Size 3 |
1800000224 |
ø 1000 (39”) |
ø 1550 (60,45”) |
1400 (3080lb) |
| Nolti-Lift 900 |
Item number |
Outer diameter in mm from |
Outer diameter in mm to |
Max. lifting capacity in kg |
|---|---|---|---|---|
|
1800000184 |
ø 515 (20,28”) |
ø 1780 (70,07”) |
900 (1984lb) |
Quality
Crucible lifters are manufactured under an ISO 9001:2015 quality management system and are CE certification approved.
