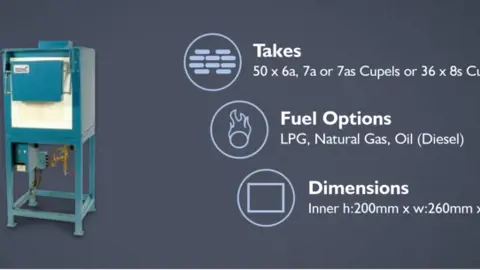

Model MF-C

Our cupellation furnace range is available in a range of sizes, suitable for a range of cupels. Our engineers work closely with our customers to select the right furnace for their needs. Contact us today to find out more.

Key Benefits

  • Uses a No. 4 muffle.
  • Takes 50 x 6a, 7a, 7as cupels or 36 x 8s cupels at one time.
  • Easy to maintain and operate.
  • Built to industry standards.

Technical Information

Construction

  • Cabinet is 2 mm zinc anneal sheet steel, lined with fire bricks and backed with Superwool® insulation board the furnace is finished in Hammerfin blue enamel.

Internal Dimensions

  • No. 4 muffle.
  • 200 mm high x 260 mm wide x 460 mm deep.

Flame Supervision

  • Per Landis & Gyr LME 44 flame controller and U.V. cell flame detector. On/off control.

Temperature Control

  • Electronic, Automatic control 1200°C, type “K” Thermocouple.

Electrical Requirements

  • The furnace is fitted with a 10 AMP single phase cord and plug top. Electrical load: 2 AMPS.

(NOTE: Voltage is customised to destination country of the furnace).

Burner Equipment and Ratings

  • LPG - 32 mm long pattern inspirator and flame retention nozzle. Burner rating - 150 mj/hr @ 140 kpa. Gas Consumption - 5 litres/HR for heat up. 3 litres/HR at operating temperature.
  • Natural Gas - Ecoflam package burner rated @150 MJ/HR @ 1 K.P.A.
  • Distillate - Ecoflam package burner rated @150 MJ/HR.

Door Operation

  • Counter balanced rising.

Spare Parts

For a recommended spare part list for this particular model, click on the buttons below.

LPG Natural Gas Oil

Quality

Cupellation furnaces are manufactured from premium grade raw materials under an ISO 9001:2015 quality management system.
