Molten Metal Systems

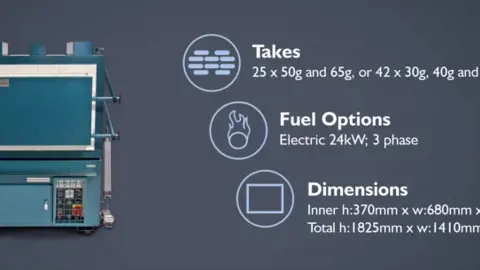

Model EMF-G

Our fusion furnace range is available in a variety of sizes that are able to take a wide range of crucibles.

Our engineers work closely with our customers to select the right furnace for their requirements.

Key Benefits

  • Uses a No. 9 muffle.
  • Takes 25 x 50g and 65g, or 42 x 30, 40g and 55g crucibles.
  • Easy to maintain and operate.
  • Compatible with 'Multi-pour' loading/unloading system.
  • Built to industry standards.

Technical Specifications

Construction

  • Cabinet is 2 mm zinc anneal sheet steel, lined with fire bricks and backed with Superwool® insulation board.
  • The furnace is mounted on a console fabricated from 2mm zinc anneal sheet and finished in Hammerfin blue enamel.

Internal Dimensions

  • No. 9 Muffle 370 mm high x 680 mm wide x 670 mm deep.

Electrical Requirements

  • 24kw, 3 Phase. (NOTE: Voltage is customised to destination country of the furnace).

Heating Elements

  • 12 x Silicon carbide elements rated at 24 K.W. Total, 3 phase.
  • Power supply to the elements is per a multi-tapped double wound transformer.

Temperature Control

  • Electronic, automatic control.
  • Type K Thermocouple.
  • High Temperature Alarm output.
  • Fitted with a 7 day timer.
  • Fitted with Over Temperature Controller.

Door Operation

  • Pneumatic rising. Operated by foot control.

Spare Parts

For a recommended spare part list for this particular model, please click here.

Quality

Fusion Furnaces are manufactured from premium grade raw materials under an ISO 9001:2015 quality management system.
