Iso-Alustar e²

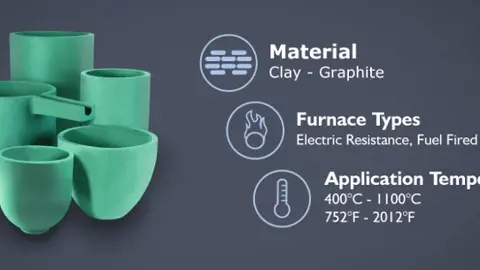

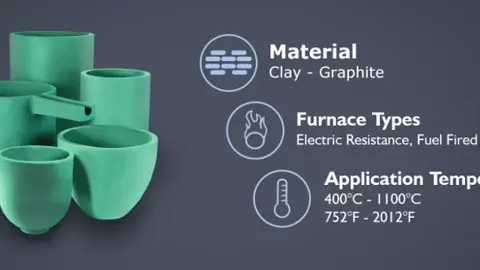

Iso-Alustar e² is a premium quality hybrid ceramic bonded clay graphite crucible with a high silicon carbide and graphite content that is manufactured through an advanced iso-static pressing process.

Morgan Molten Metal Systems uses a proprietary processing technology that results in a product with a very homogenous and high density structure. This allows the crucible to obtain superior thermal conductivity over its entire operating temperature range, high mechanical strength and erosion resistance along with good shock resistance. These properties translate into a durable and robust crucible with excellent performance characteristics in lower temperature environments.

In addition, Iso-Alustar e² features proprietary internal and external glazes to prevent low temperature oxidation and degradation that occur in aluminium and other low temperature alloys over extended periods.

Applications

Iso-Alustar e² is designed to perform exceptionally well to melt and hold aluminium and other low temperature alloys in gas-fired and electric resistance furnaces.

Iso-Alustar e² Typical Metal Casting Temperature

400°C - 1100°C (752°F - 2012°F).

Performance Characteristics

  • Extremely high oxidation resistance.
  • Very good thermal conductivity.
  • Very good resistance to chemical attack.
  • High mechanical strength and good erosion resistance.
  • Good thermal shock resistance.

Identification

Iso-Alustar e² crucibles are finished with a green Low Temperature Protection (LTP) coating.

Pattern Range

Iso-Alustar e² crucibles are available in a range of shapes and sizes to suit most end user requirements. Sizes can be made available with pyrometer pocket to facilitate measurement of metal temperature. A wide range of pouring lips and spouts is available.

For available sizes and shapes click here.

Contact us for a specific recommendation based on your requirements.

Quality

Iso-Alustar e² crucibles are manufactured from premium grade raw materials under an ISO 9001:2015 quality management system.
